TASK
Product design of a compact quantitative Point-of-Care Testing analyzer with dry fluorescence immunoassay technology.
Application of the recognizable zybio product language
Design of the instrument with corporate characteristics
Design for additional complementary products
SERVICES
Ergonomic consideration

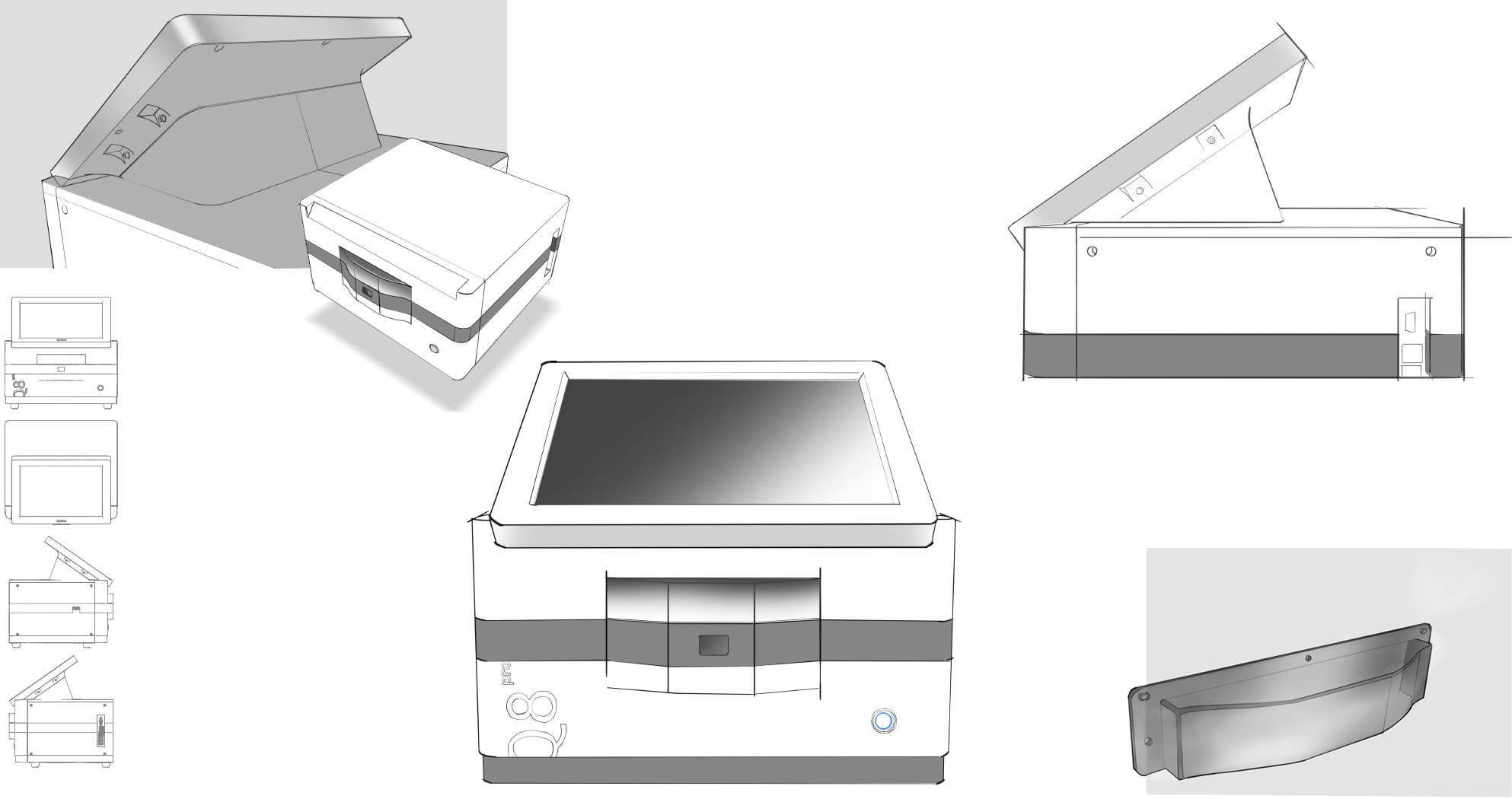

Precise dimension design and proportion adjustment
Maximum miniaturization of the volume
Suggestion for reduction of production costs

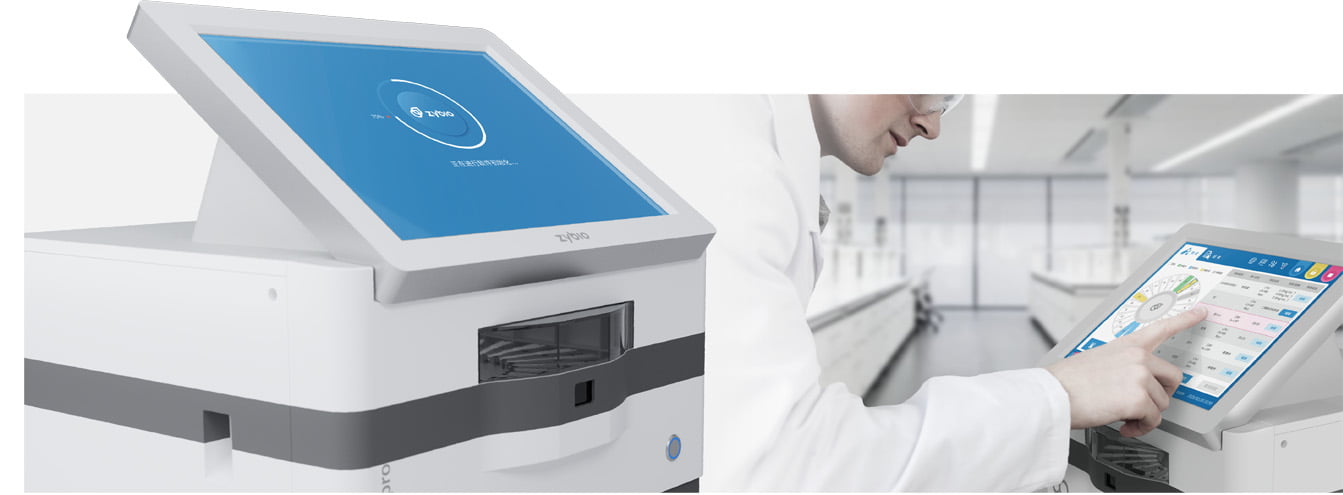

Optimization of UI
Exploration of Scale and Space

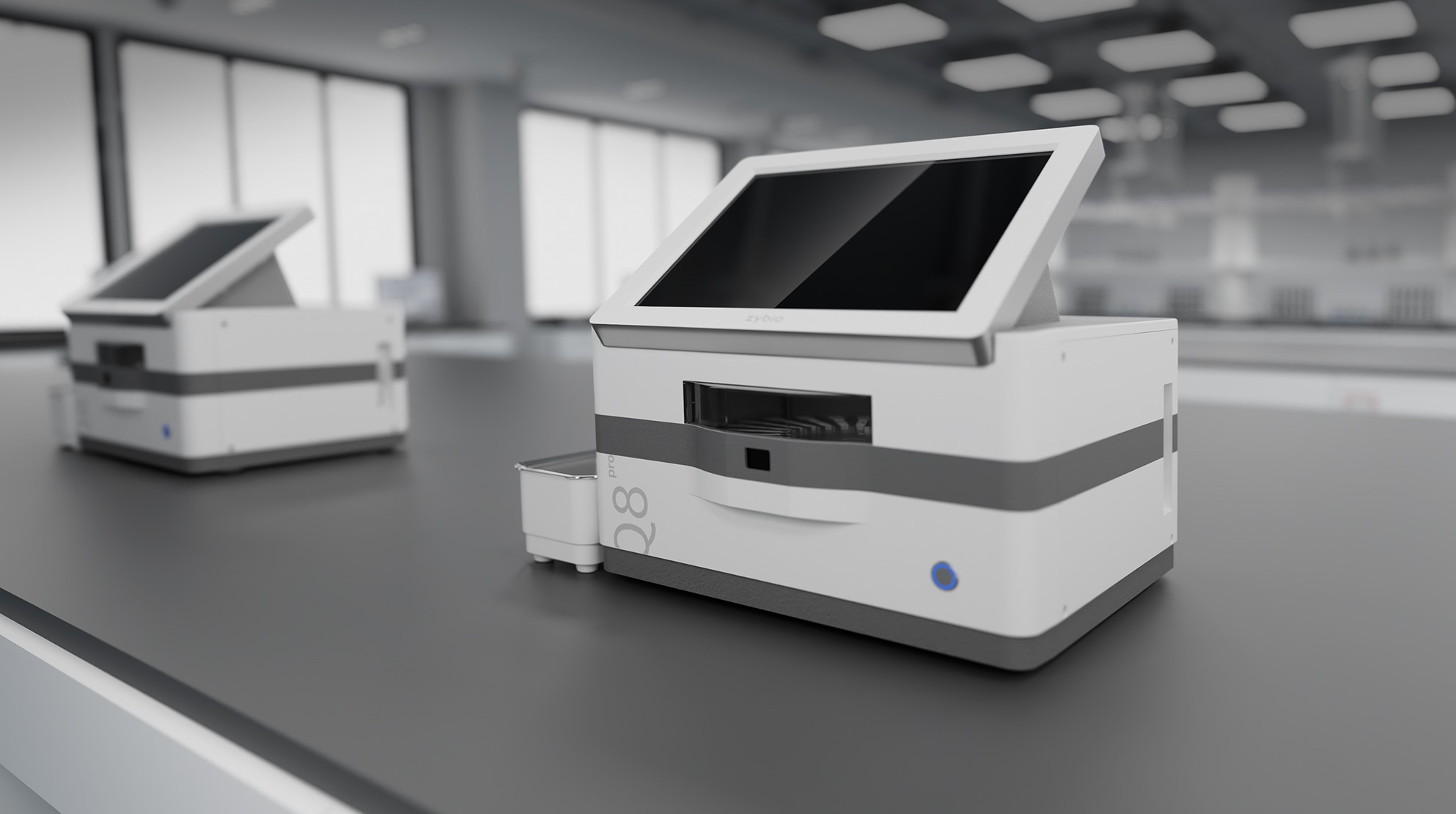

yimumu carefully designed the device to maximize functionality and
minimize size, while ensuring a comfortable screen angle for the user.
Injection-moulded parts instead of metal
parts were implemented to reduce production
costs. Silver-paint was applied on the frame
of the screen which accentuates the texture.

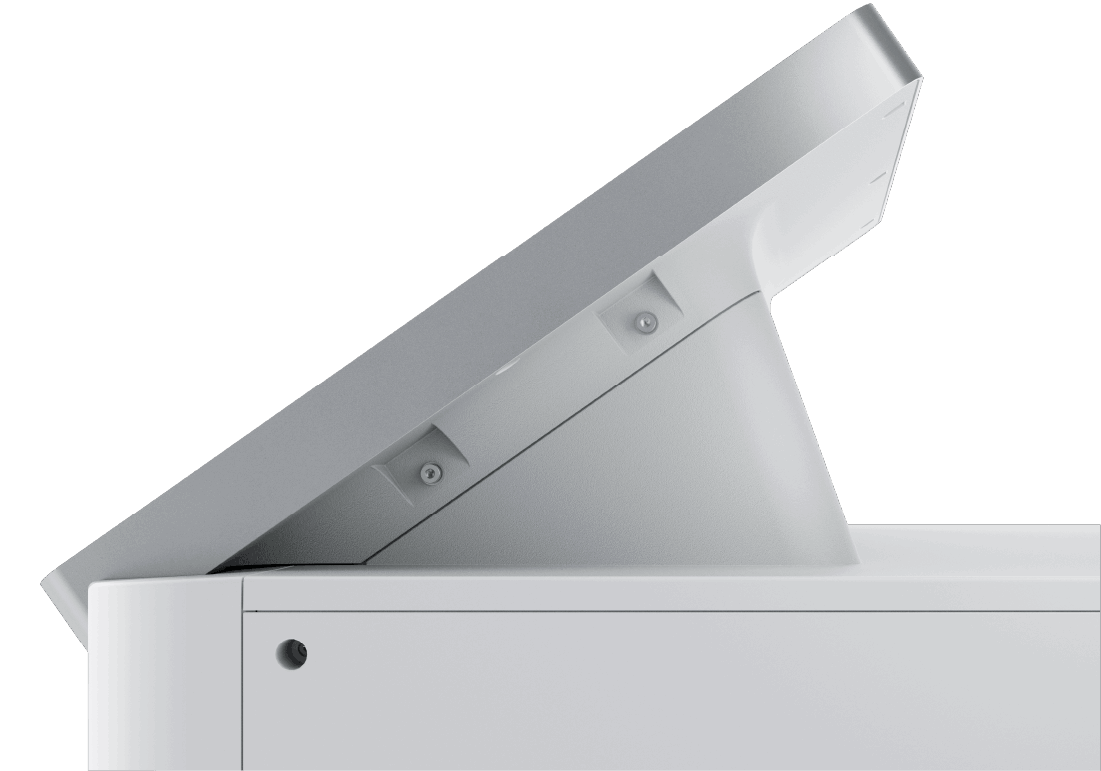

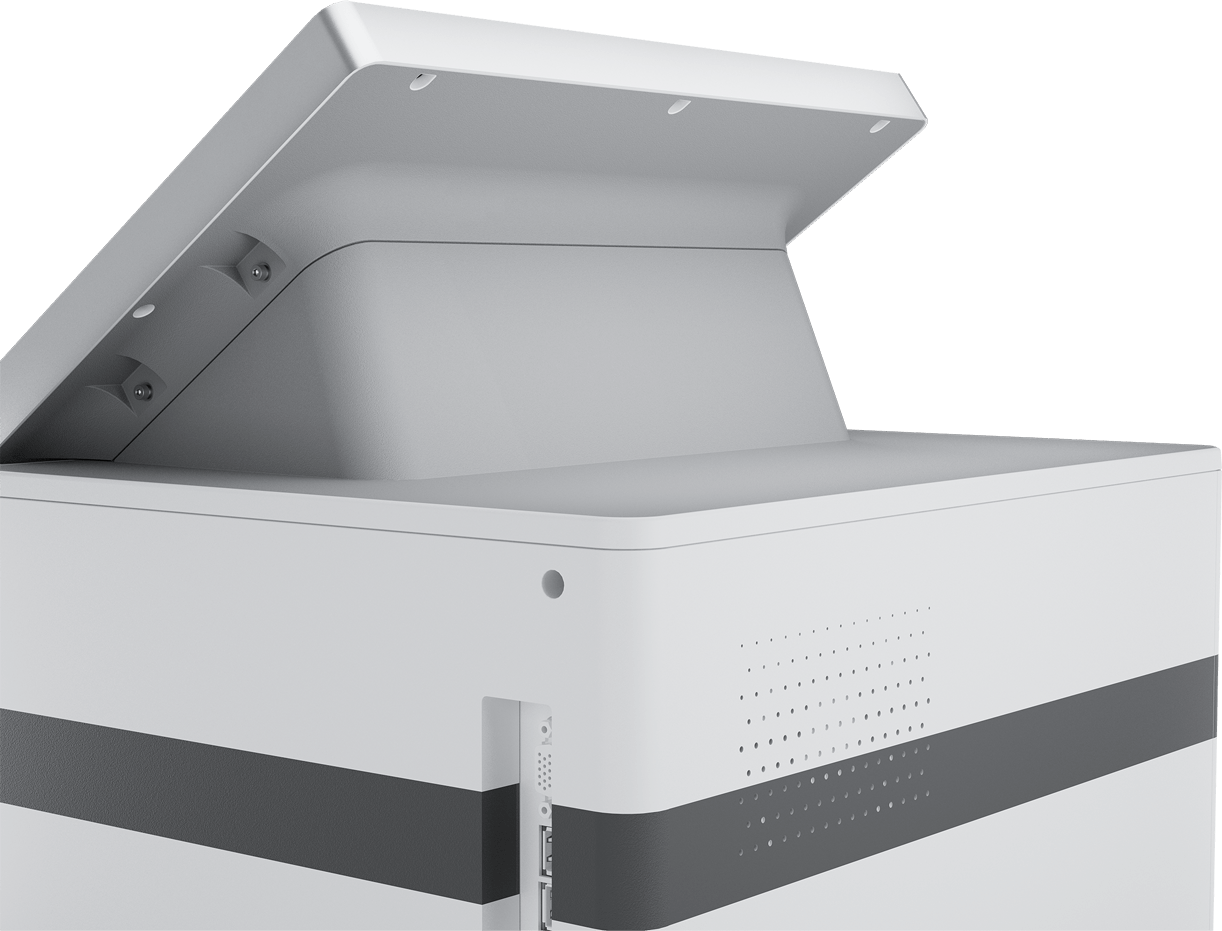

The rear part of the screen is cut
inwards, and the grey surface serves
as a transition, creating a more
concise and lightweight product
appearance, making the whole
device sophisticated.
For the ventilation opening, the holes
progressively decrease in size from
bottom to top. This design not only
incorporates elements of the client's
brand but also gives the back of the
instrument a more exciting appearance.
Guided Operation -
Visible in Real-Time

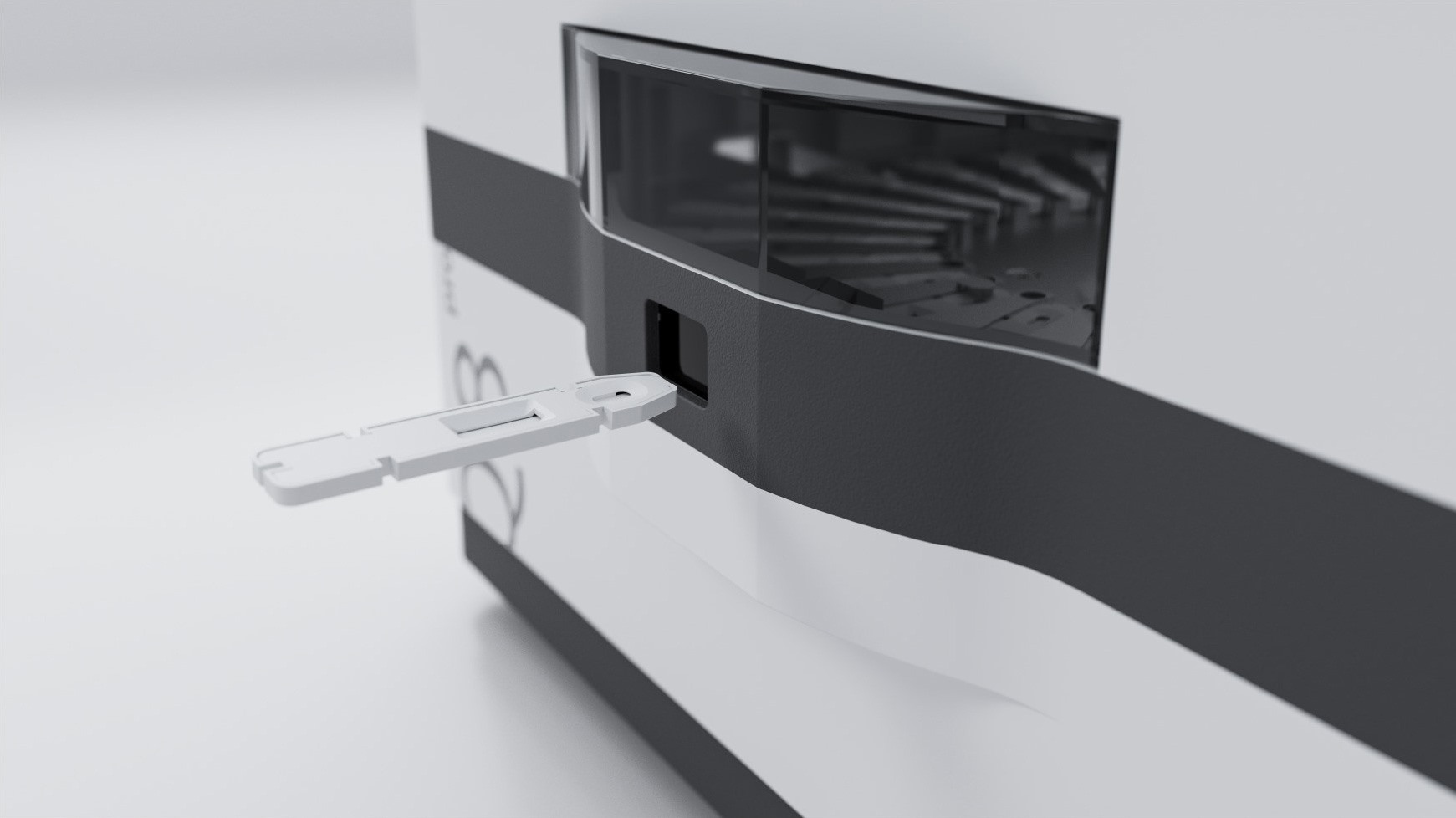

The flat cut at the front end highlights the operational function of the card slot.

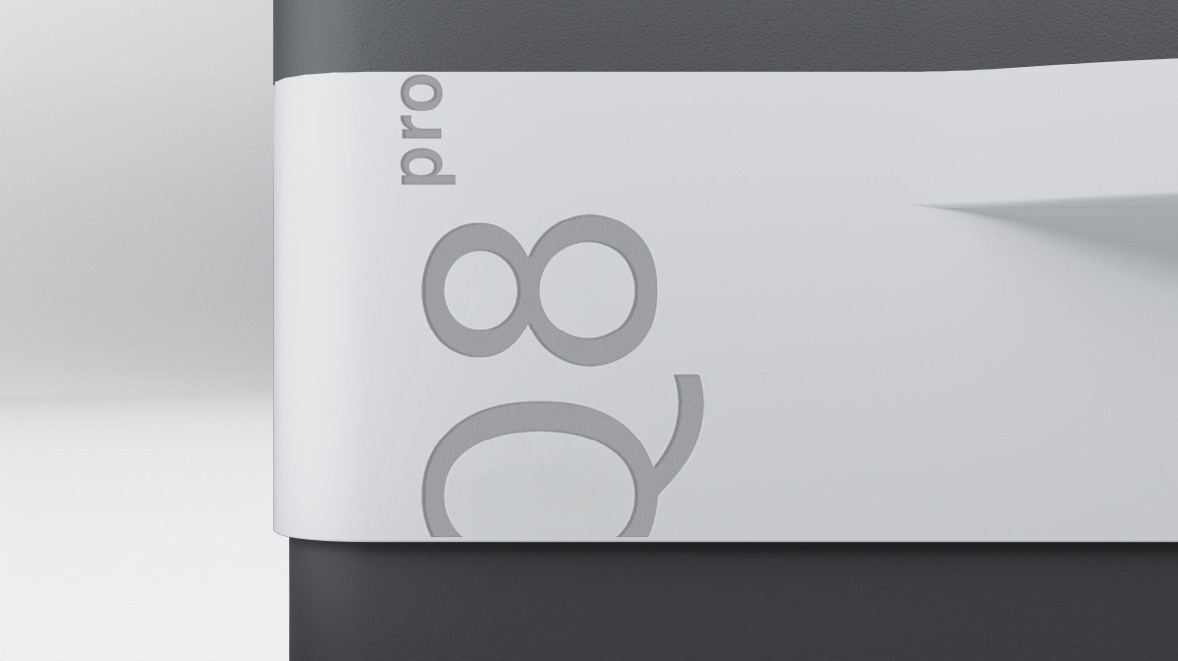

The vertical placement of the model name on the front
surface creates a visual connection between the parts.

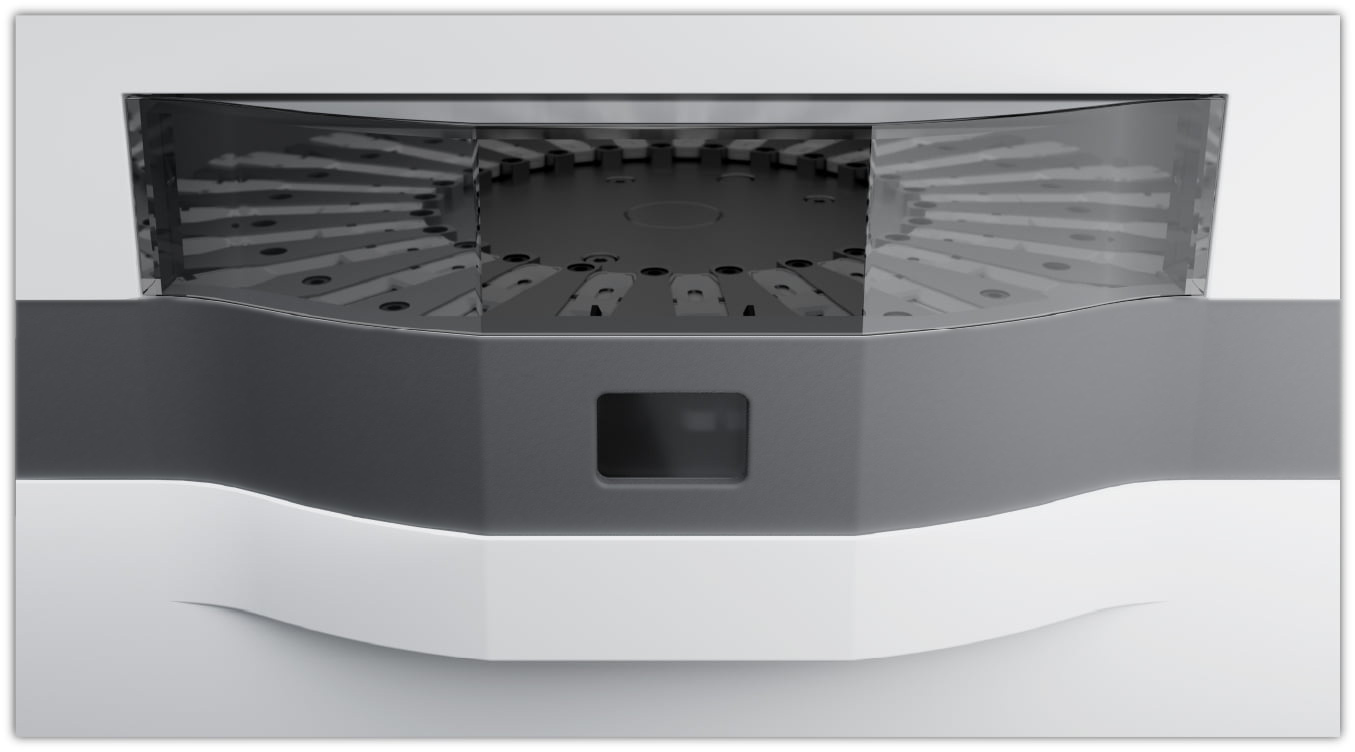

The translucent acrylic window provides excellent visibility.
Rigorous Interaction Logic
Services In-Depth

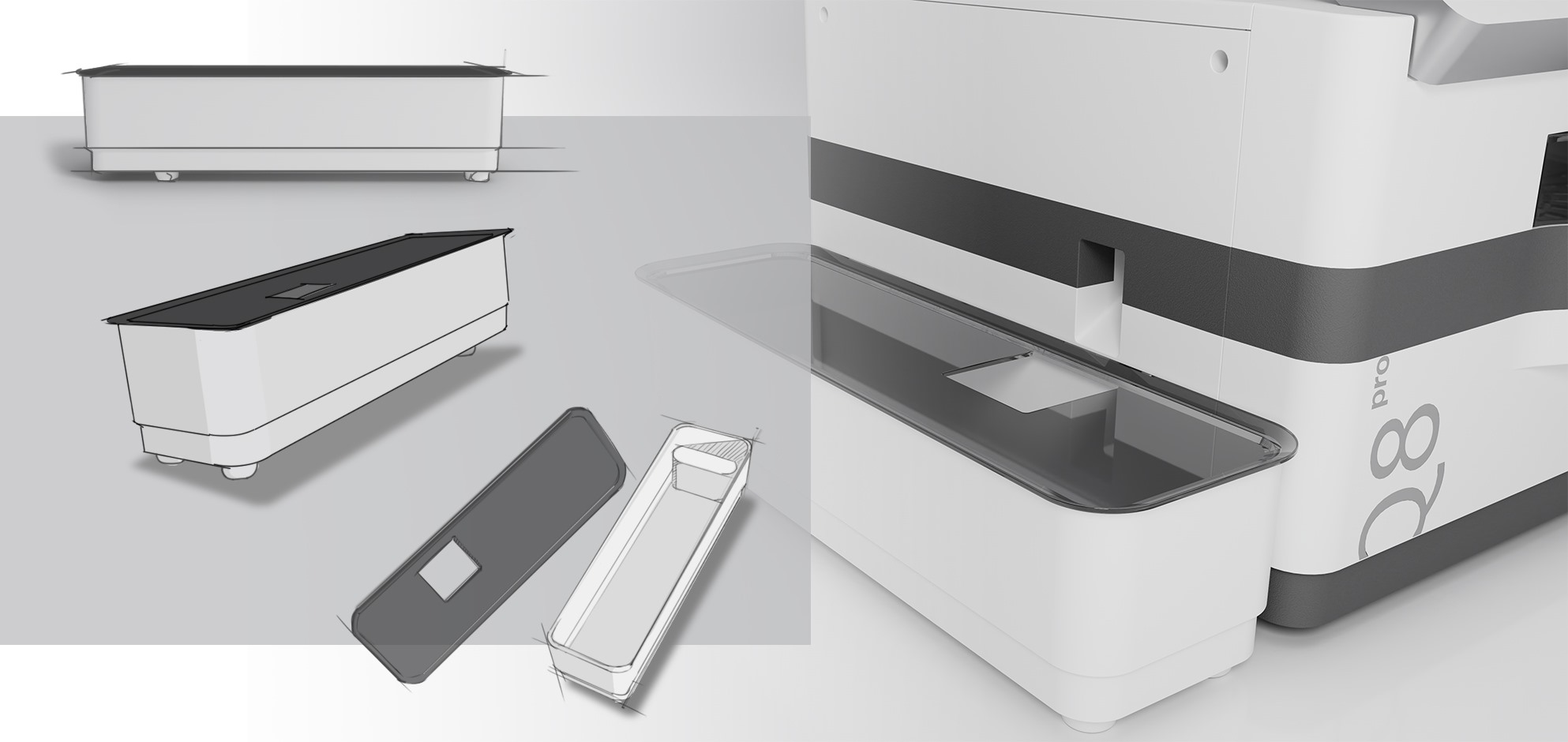

yimumu offered its customer comprehensive and thoughtful services, including designing
an aesthetically matching waste bin that complements the machine.
Optimization
yimumu actively pays attention to user‘s subsequent feedback and continuously optimizes the product to improve user satisfaction.
yimumu
Helped medical diagnostic instruments win the iF Design Award
yimumu
Helped medical diagnostic instruments win the iF Design Award
