Mass spectrometer EXS 2600

TASK

Designing the look of a fully automated microbial mass spectrometry detector with a product appearance in line with the cost-effective market positioning of clinical laboratories.

Transfer of the recognizable zybio product language
Finding variability within the corporate characteristics while maintaining coherence

SERVICES

Ergonomic considerations
Application of design guidelines
Product design
Product graphic
Colours, material, finishes concept (CMF)
Continuous supervision of the implementation

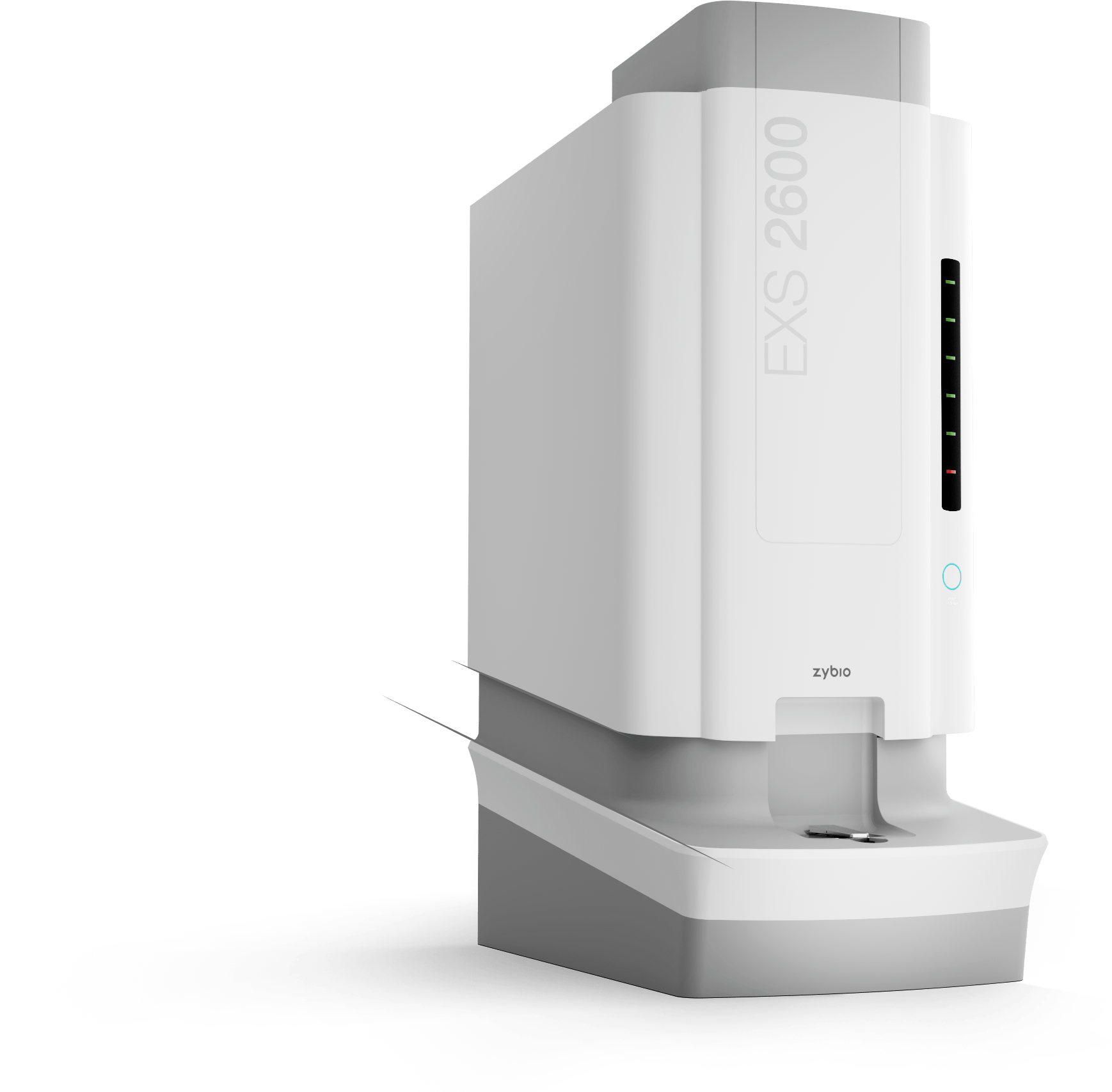

Designing a Desktop Instrument with Corporate Identity

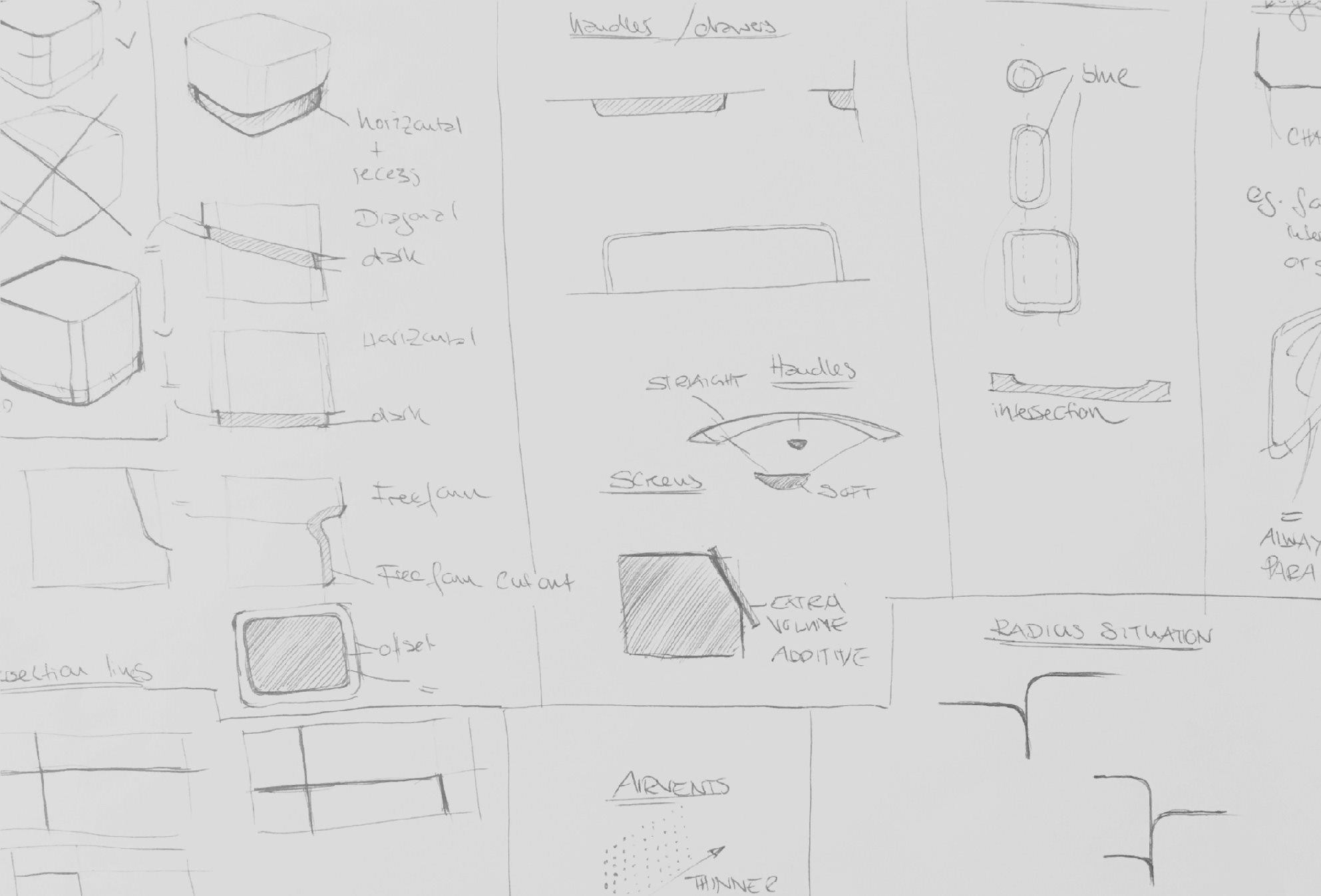

The body of the EXS 2600 is relatively large. A desktop instrument of this size could appear too massive and even intimidating to the user if not carefully designed. yimumu has visually divided the instrument laterally with oblique lines. This gives the shape lightness and dynamism and the voluminous apperance can be avoided.

Ergonomy and Shape

Perfect experience for the customer:

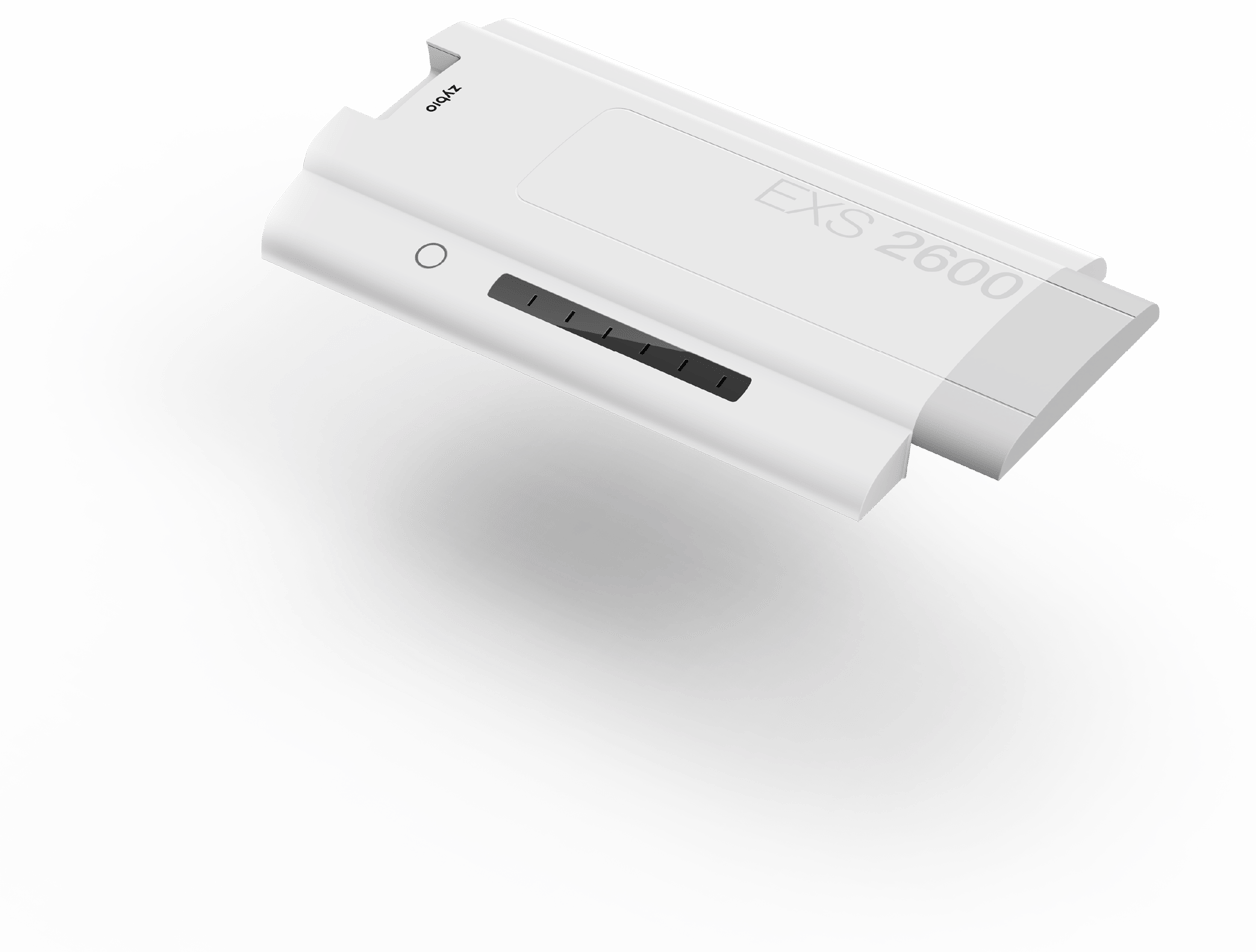

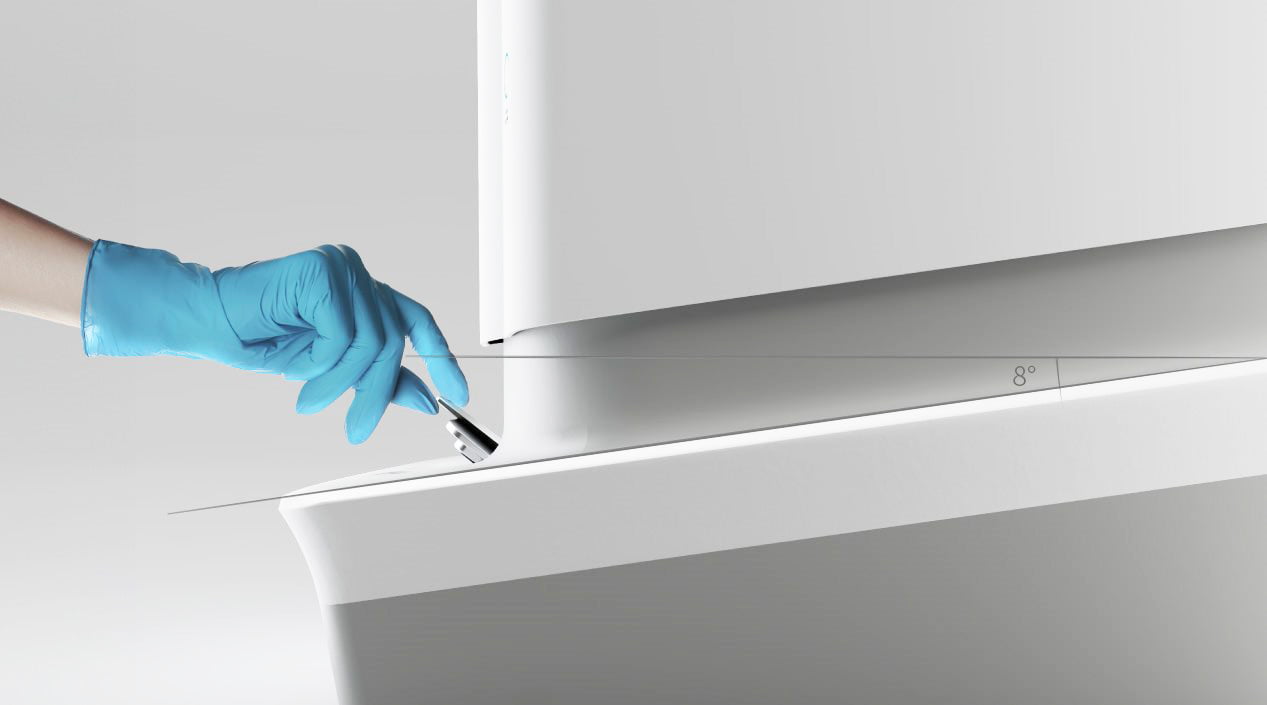

The top of the base is pleasantly inclined to
make it easier to open the cover.

User Experience

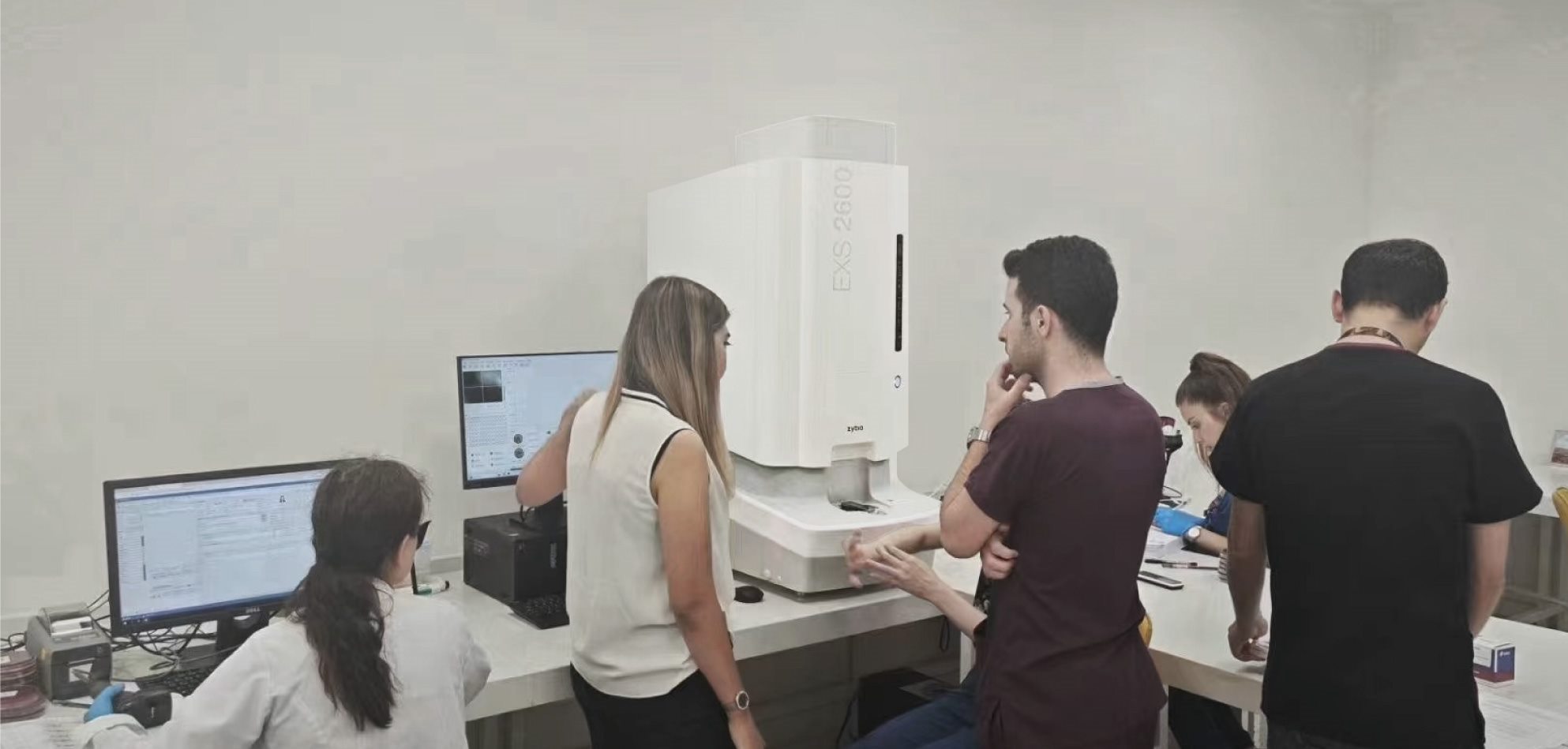

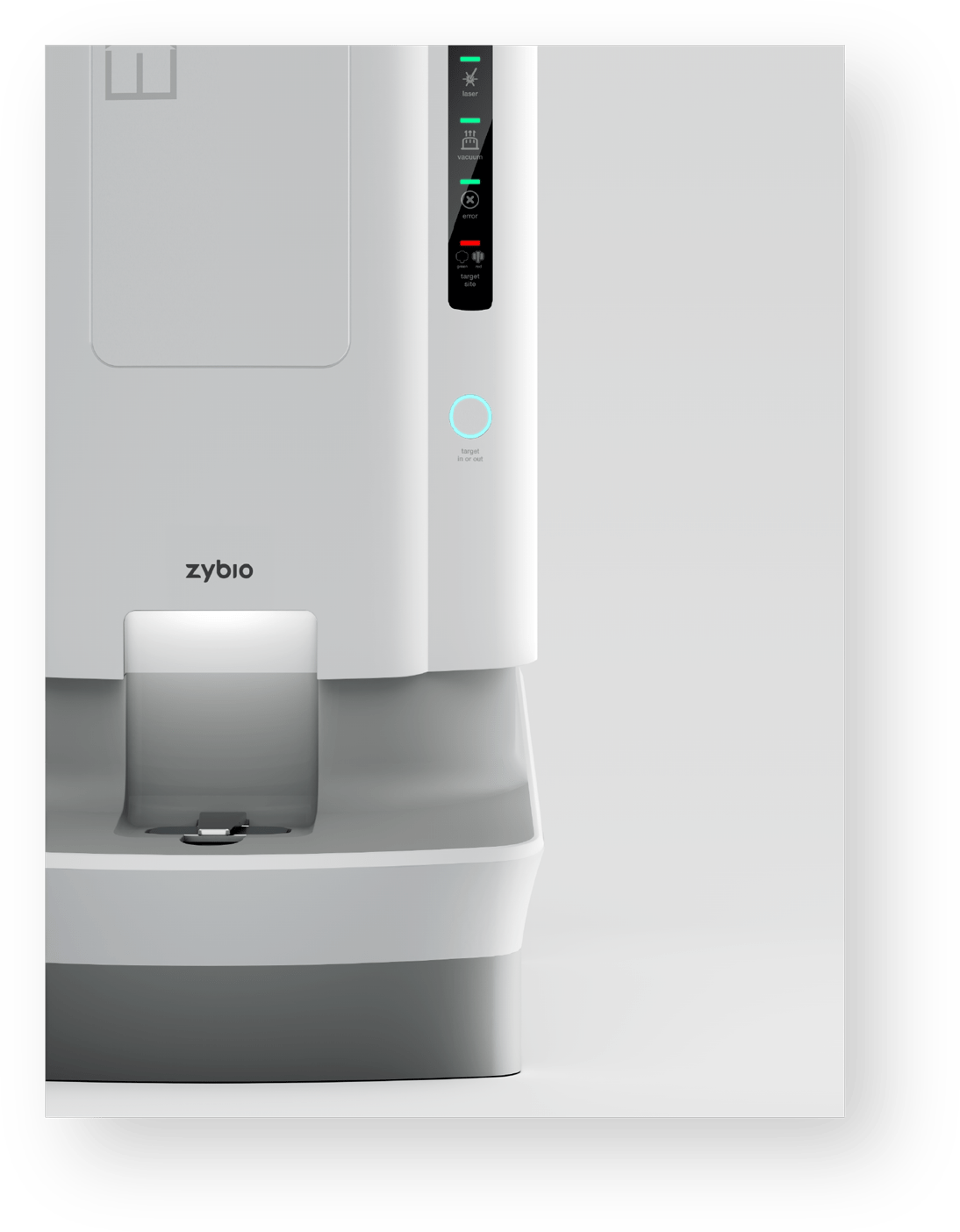

Lighting above the work area allows the user to better monitor the process. It also contributes to the laboratory atmosphere and acts as an eye-catcher.

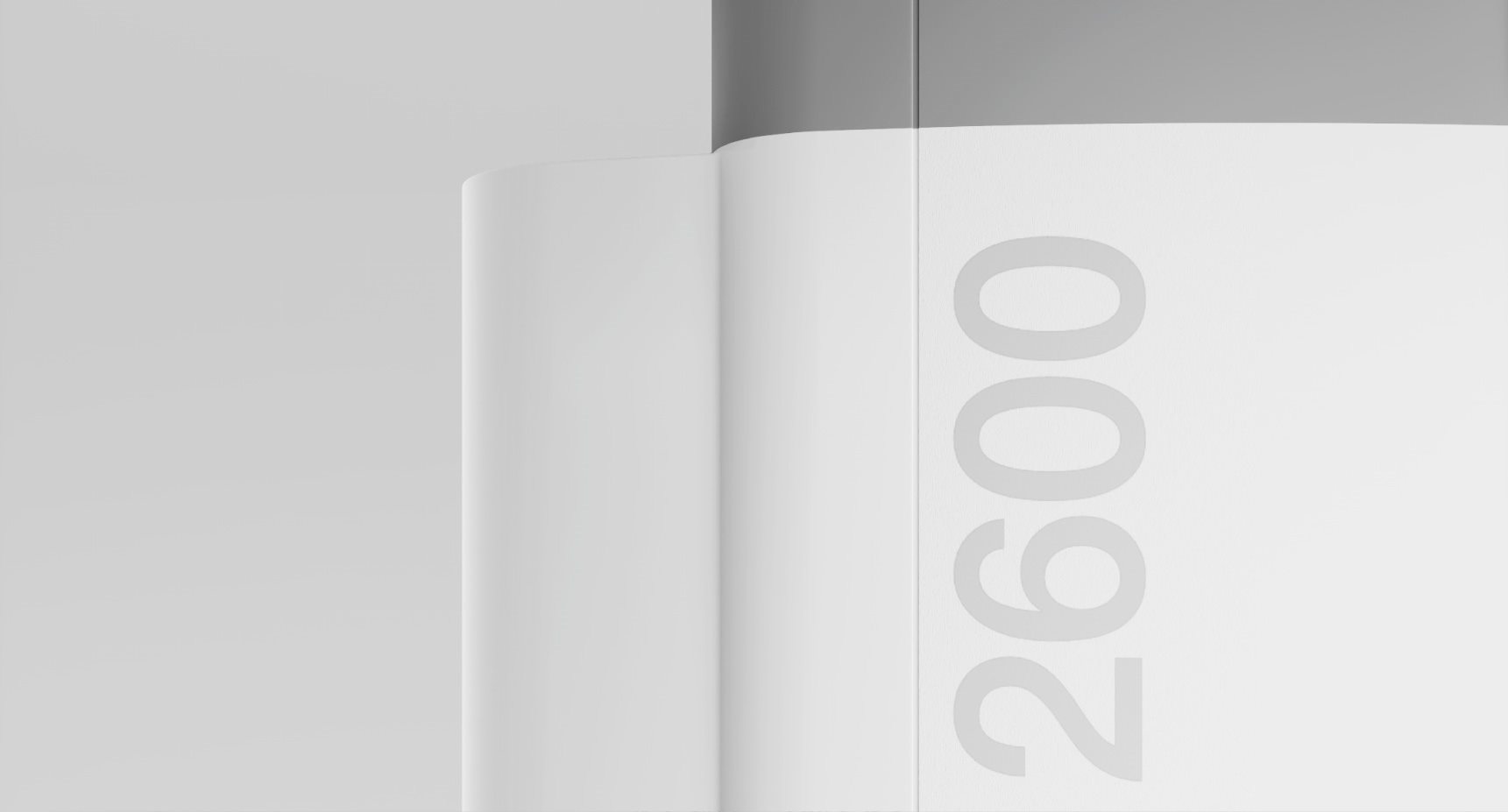

Focus on Details

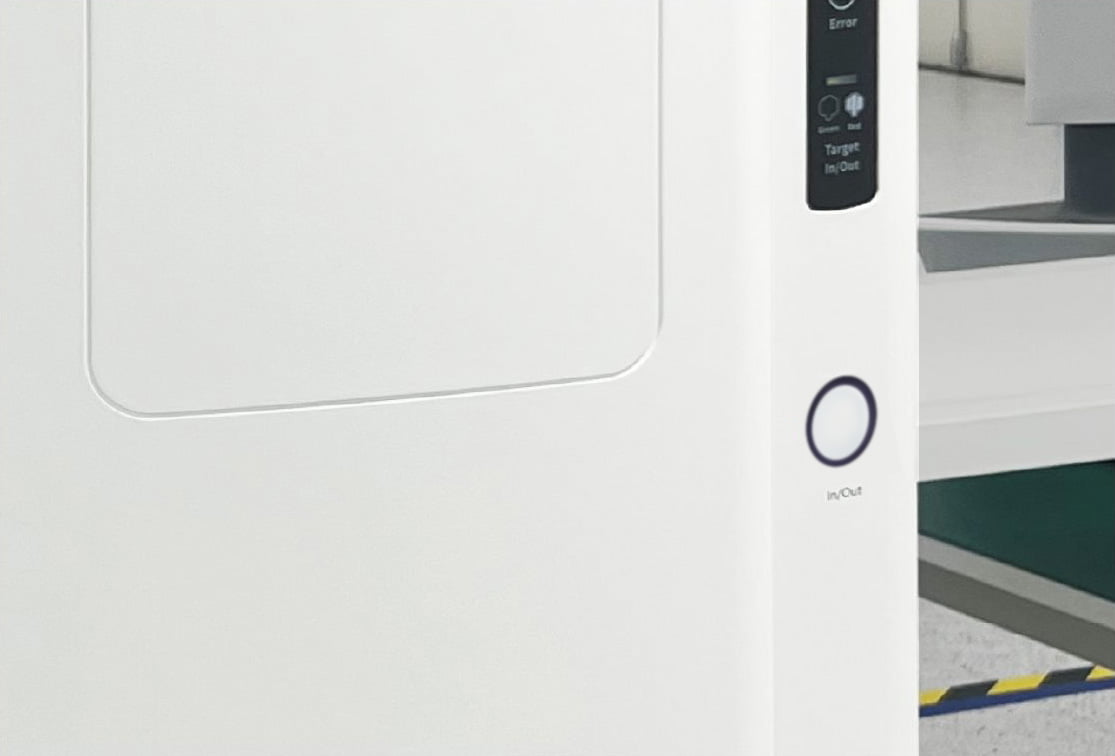

The groove adds more detail to the surface and reduces its rationality.

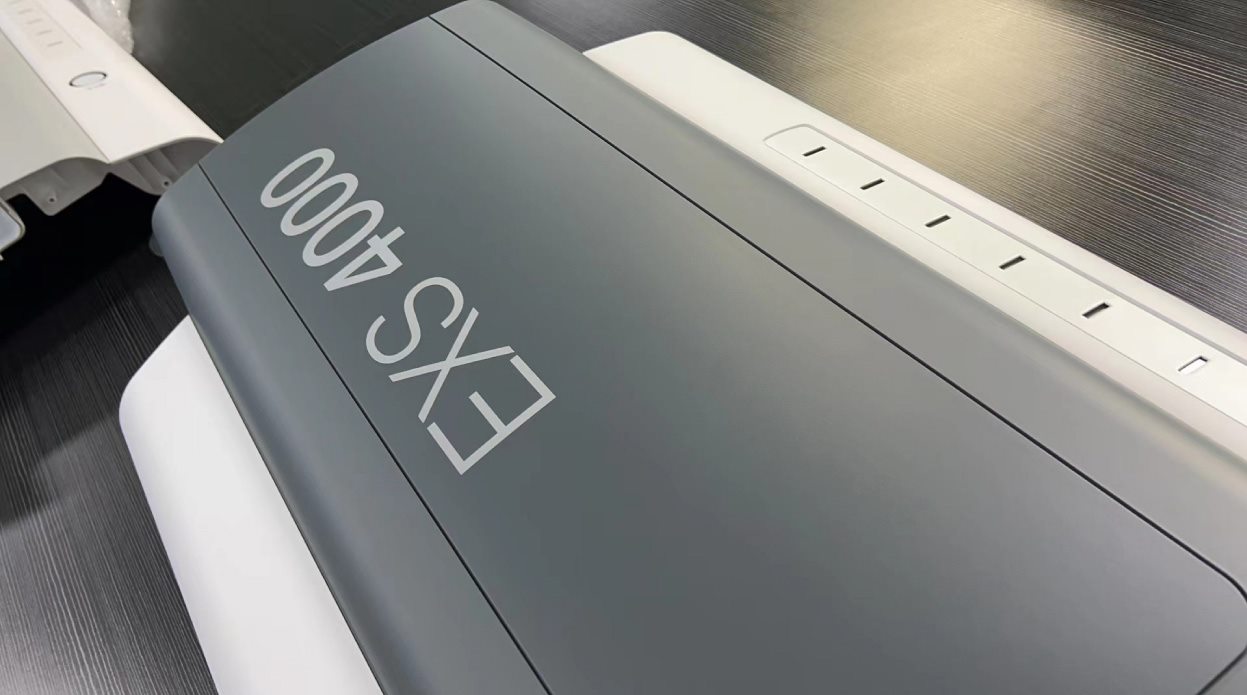

yimumu implements the uniformity of our clients product design language: screen printing, color matching and design language are designed strictly with the aim of increasing the company's product awareness.

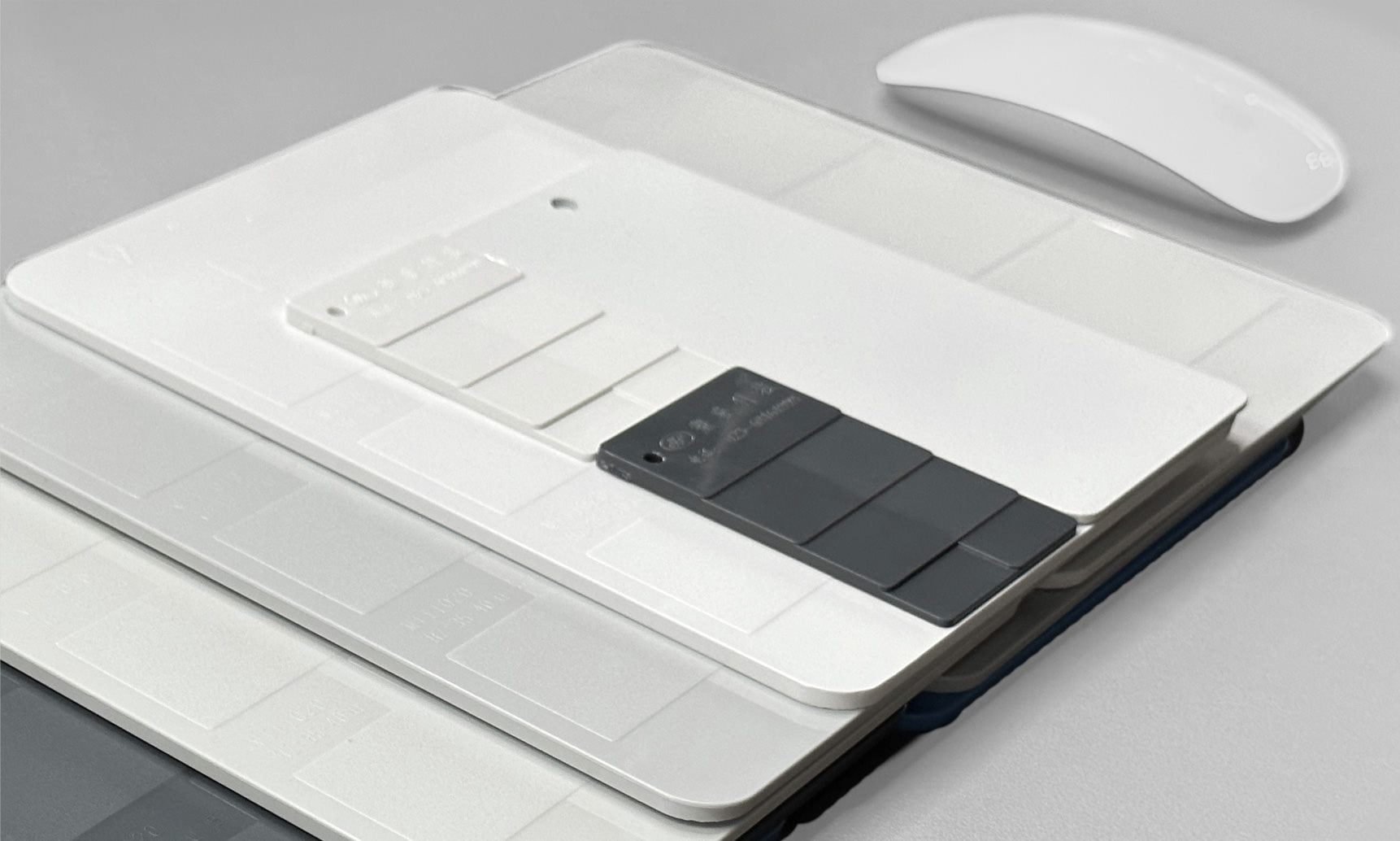

yimumu supports its customers from checking the details to advising on the purchase of key parts tailored to the housing colour and surface.

Providing Customers with Solutions for Cost Reduction and Increased Efficiency

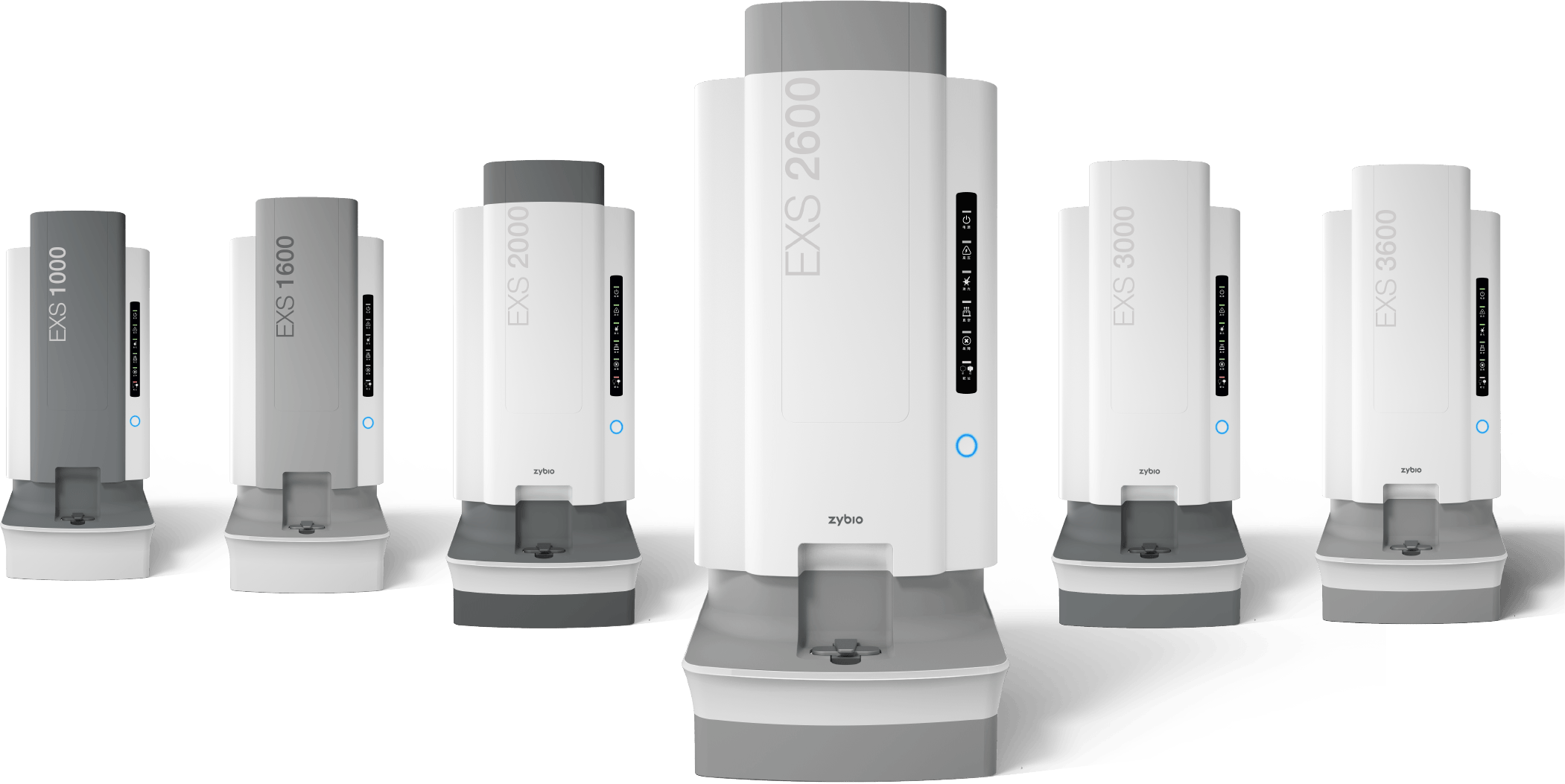

Since the zybio mass spectrometer series has a range of products with the same technical principles, yimumu suggested cost-effective differentiation
based on the colours applied by screen printing, rather than increasing manufacturing costs through shape variance.
