Fast Maintanance

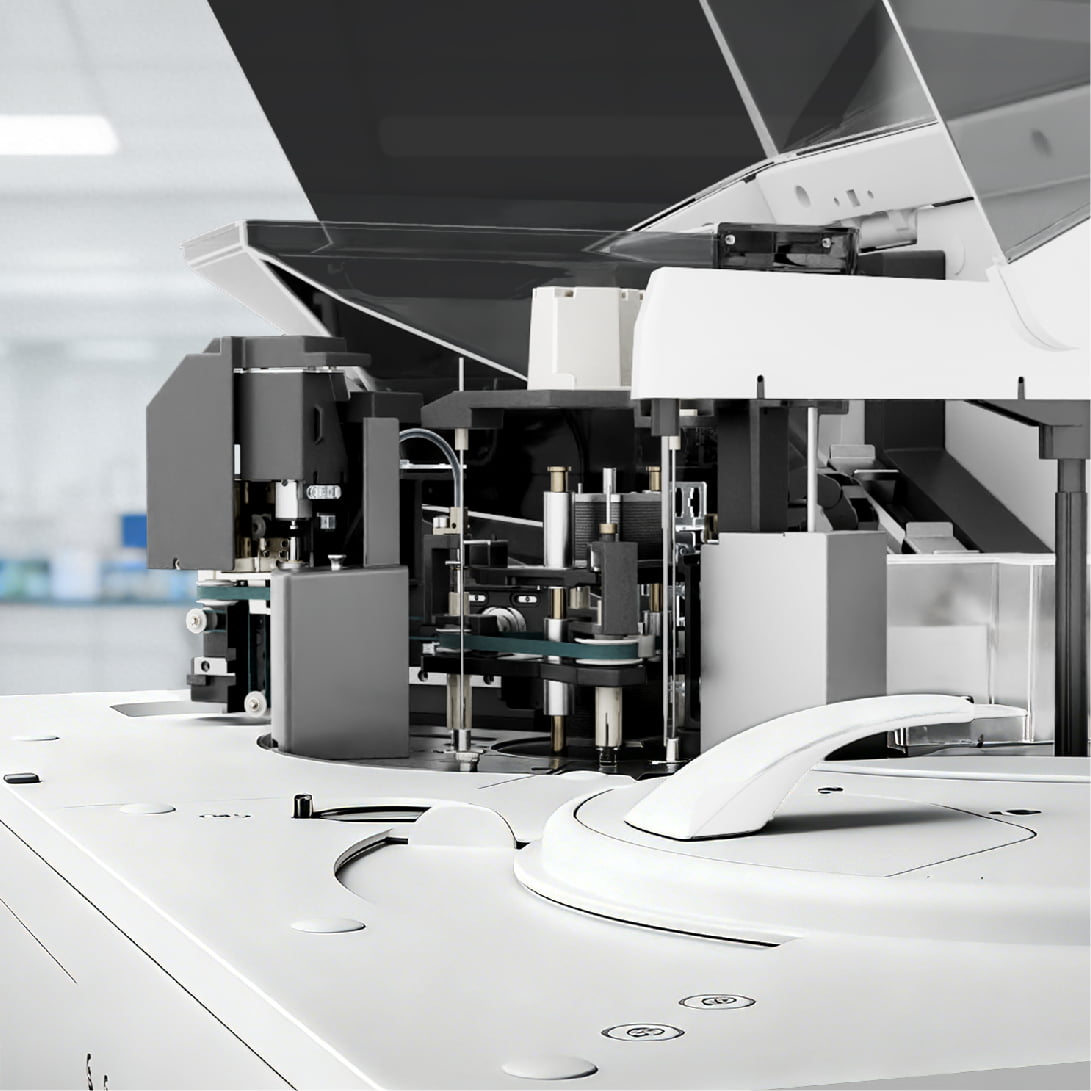

The small lid is intended for loading large quantities of cuvettes. The plexiglass hood provides better visiblity of the process.
Client Zybio

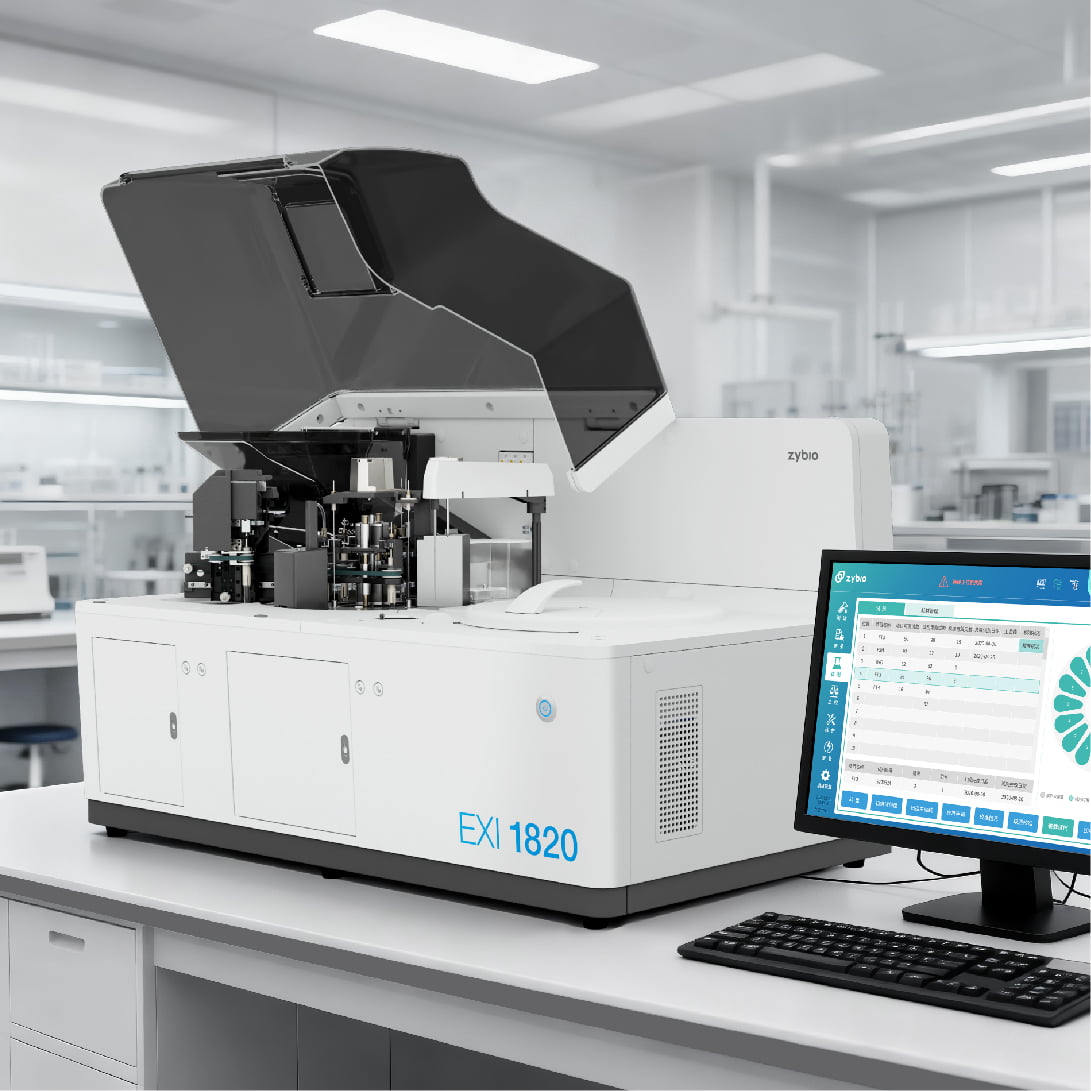

Chemiluminescence Immunoassay Analyzer
TASK
A fully automatic benchtop chemiluminescence immunoassay analyzer with optimizedmagnetic separation, online vortex mixing and dedicated STAT port.
-
Application of the zybio product design language
Designing an instrument with corporate characteristics
Excellent usability and ergonomy to meet the needs of lab staff
SERVICES
-
Ergonomic considerations
-
Application of design guidelines
-
Product design
-
Product graphic
-
Colour, Materials, Finishes Concept (CMF)
-
Continuous support of the implementation

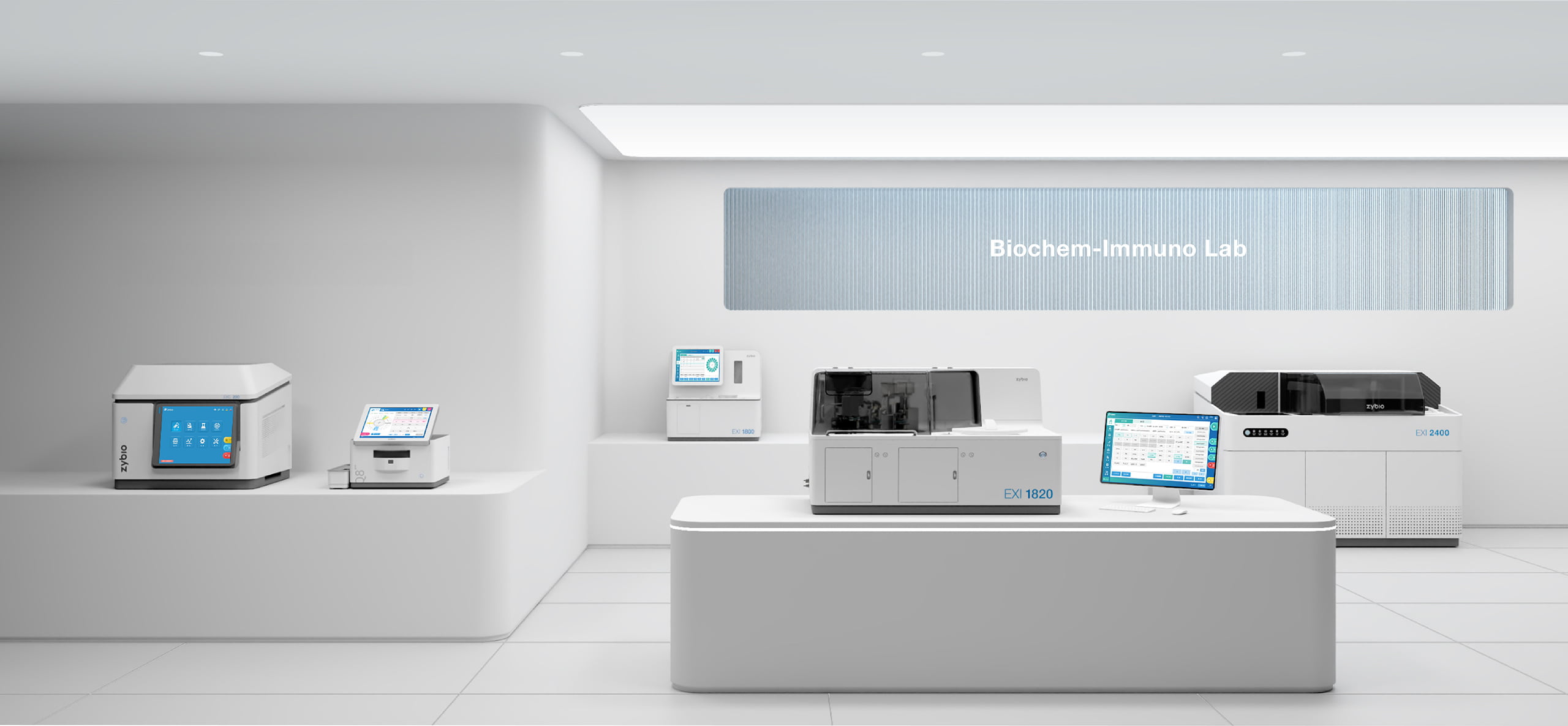

Design language of the series

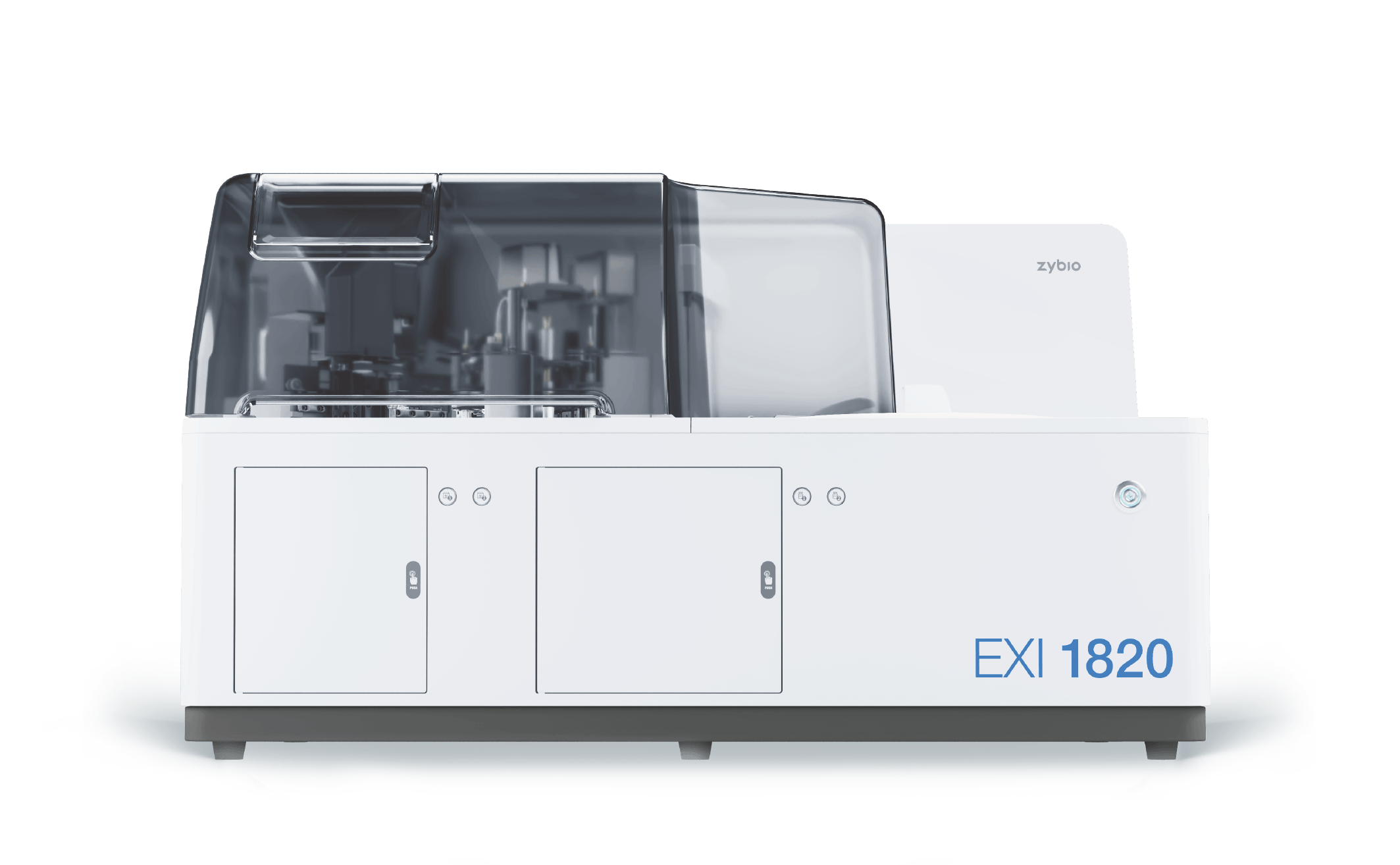

The machine is designed to visually match the
chemiluminescence immunoassay analyzer
portfolio of zybio.
Fast access
The double waste box for laboratory consumables can be opened
using push-to-open technology

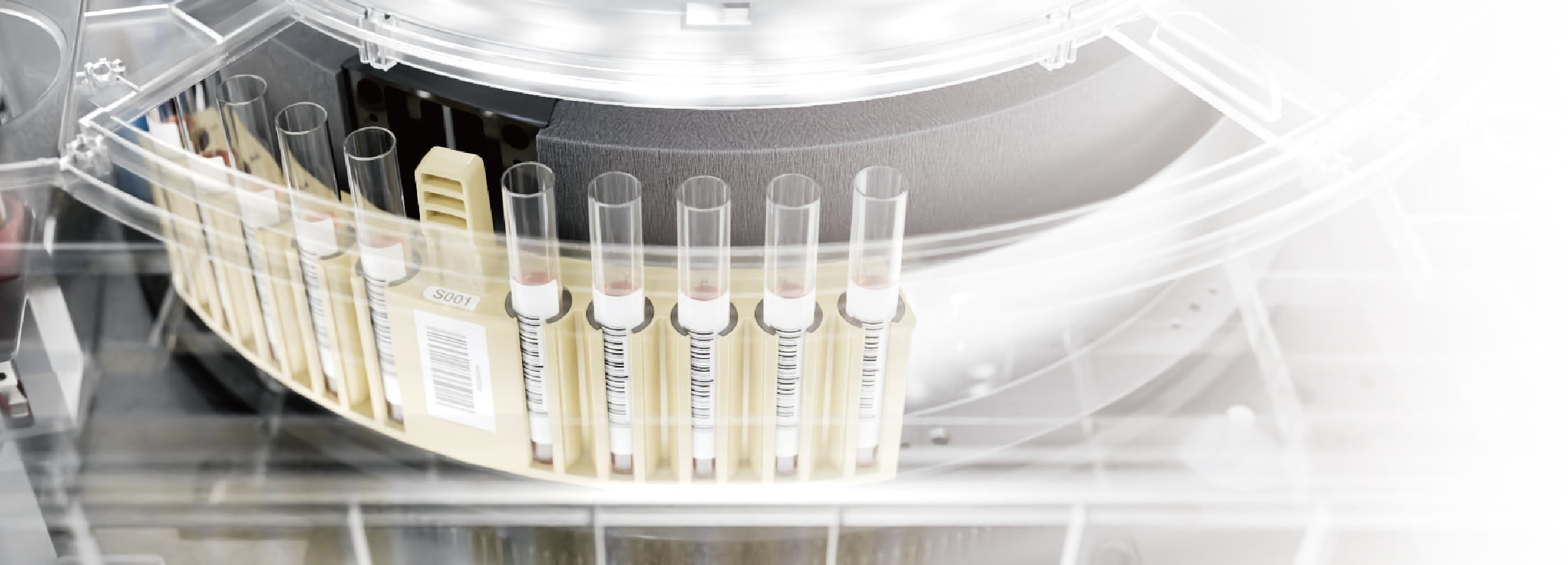

The STAT port is located to
the left of the regular sample
port

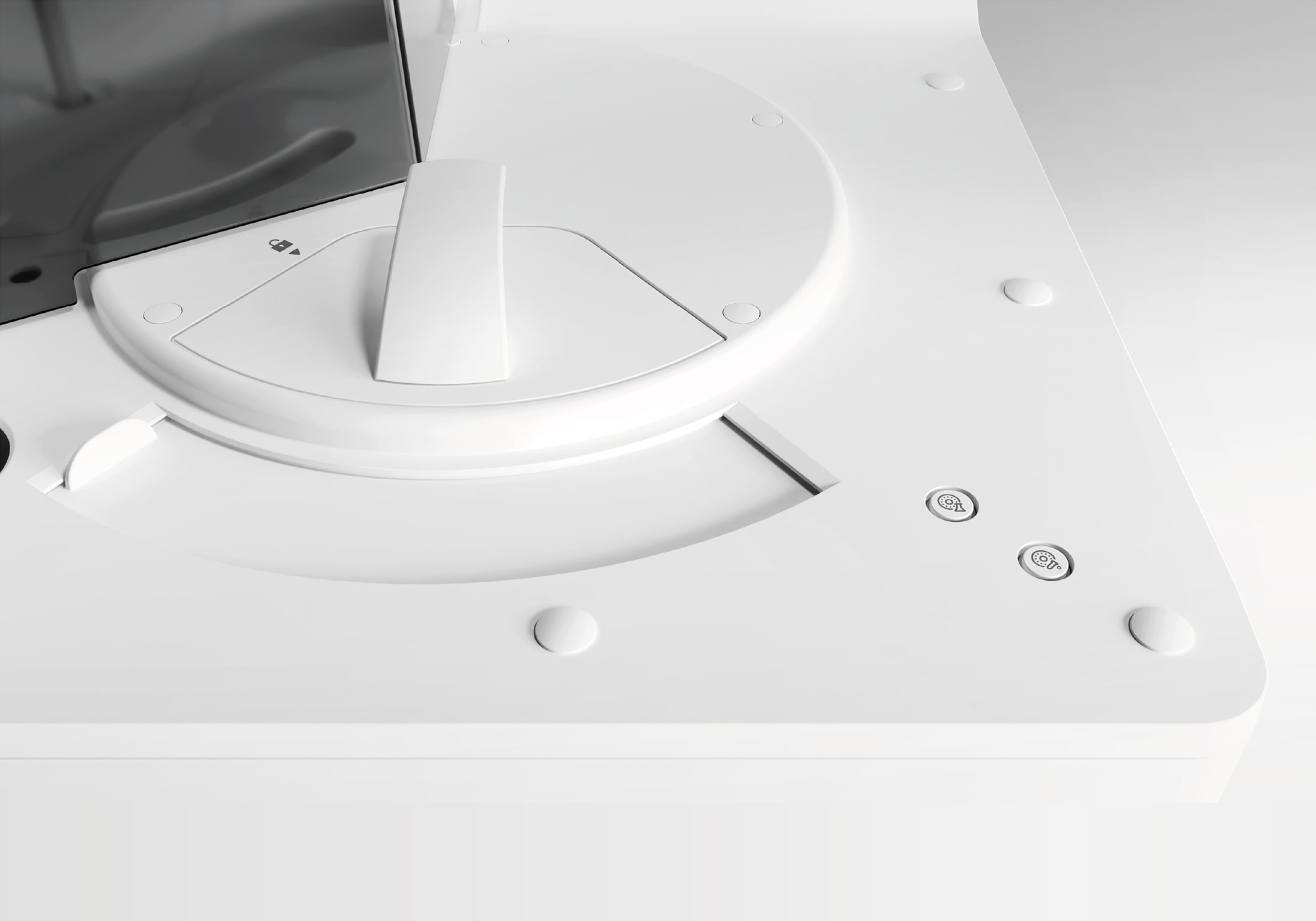

Every handle is designed to better t the movement of the opening, ensuring intuitive usage of the machine. The lid can be locked and
opened by turning the handle to the left.
The edge is chamfered for
better access.
