Design of a Graphical User Interface for an automated Hematology Analyzer.
- Definition of a recognizable Zybio GUI language
- Transfer to the design of the tabletop device
Z3 UI界面
试剂管理
质控管理
样板分析
试剂管理
质控管理
样板分析
试剂管理
质控管理
Client Zybio
Hematology Analyzer Z3
TASK
SERVICES
- User-Flow
- Wireframes
- Prototypes
- Derivation from design guidelines
- User Interface Design
- Continuous supervision of the implementation
For UI projects we offer the entire user
experience evaluation process from interface
testing up
to the final pixel screen files.
colour system
3px
45°
2px

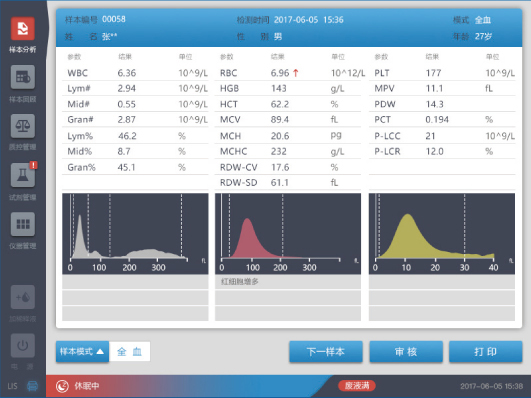

Sample Analysis
Sample Review

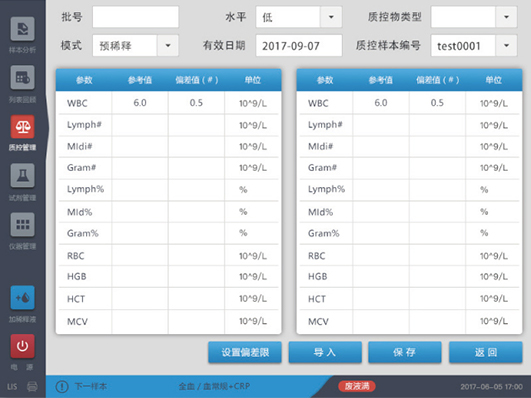

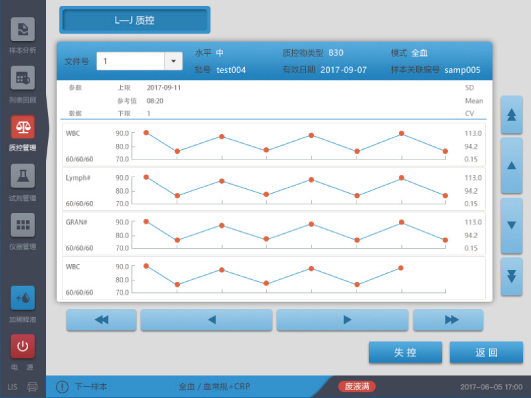

Quality Control

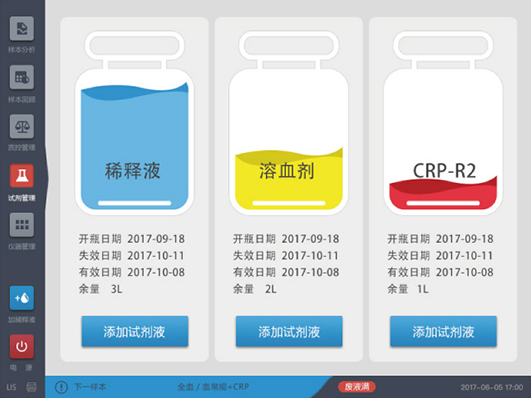

Reagent
Instrument

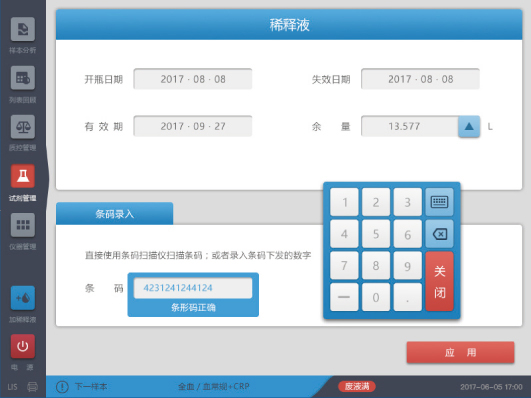

Add diluent
Calibration
Performance
Service
Status
Setting
Tools
Print
Caution
ON/OFF
Exit
Wifi
Backup
Keyborad
Column left
/ next(left)
Column left
/ next(left)
Line up
Line down
Page left
Page right

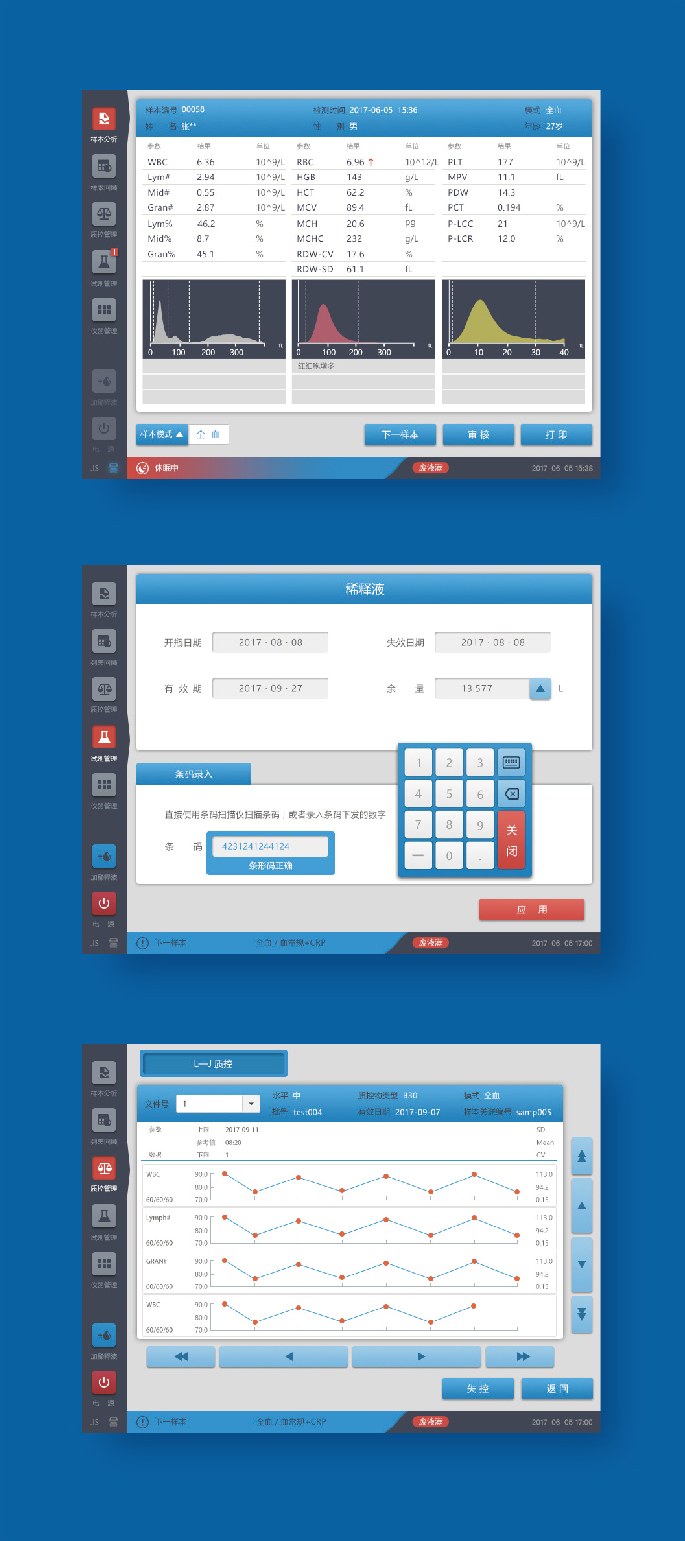

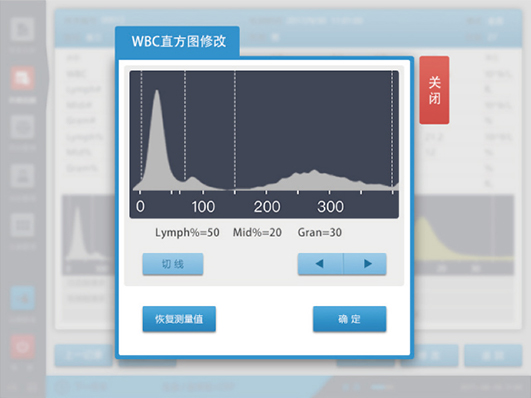

UI
The Z3 information structure and content
have been redefined
to provide an optimized
operating experience for the user.
blank page for content
status bar
